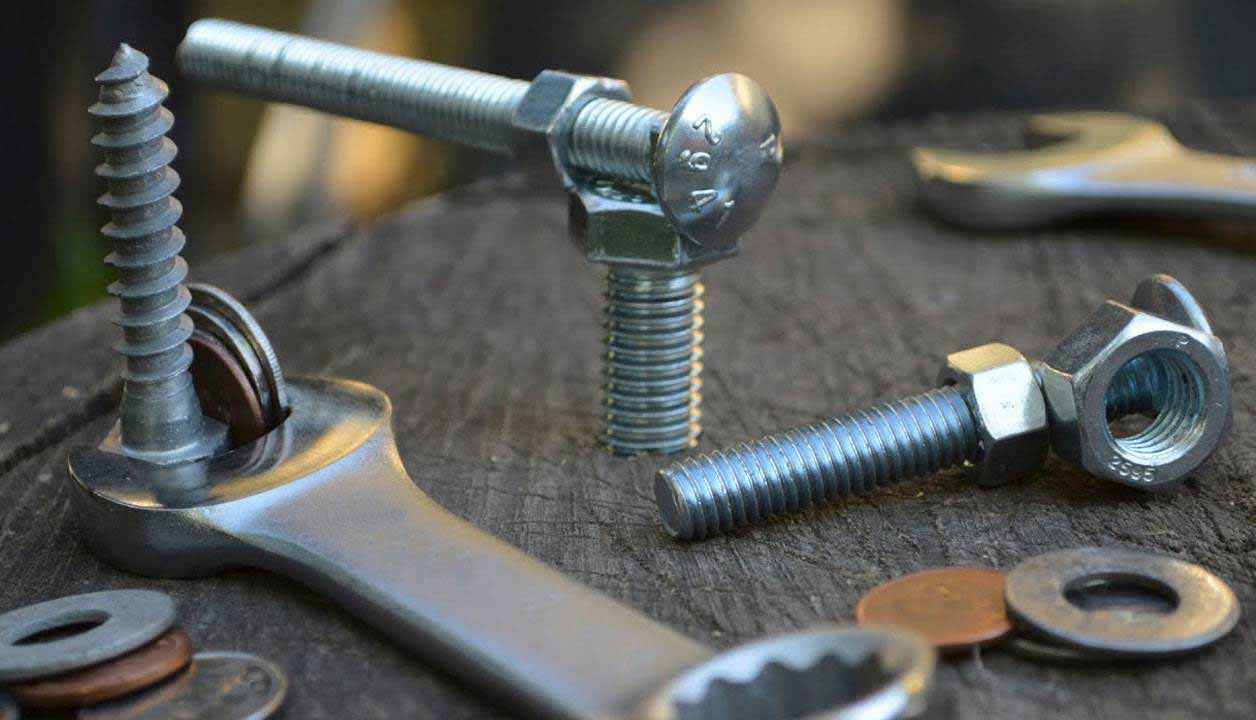

Inconel 625 is a high-performance nickel-chromium-molybdenum alloy renowned for its exceptional corrosion resistance, high strength, and durability, even in extreme environments. Inconel 625 fasteners are a crucial component of this alloy's application in various industries, including aerospace, chemical processing, marine engineering, and oil and gas.
Chemical Composition: Inconel 625 is composed of nickel (58%), chromium (20-23%), molybdenum (8-10%), niobium (3.15-4.15%), iron (5%), and traces of other elements such as manganese, titanium, aluminum, and cobalt. This unique combination of elements imparts remarkable properties to the alloy, making it suitable for challenging conditions.
Corrosion Resistance: One of the standout features of Inconel 625 fasteners is their outstanding corrosion resistance. They exhibit excellent resistance to a wide range of corrosive media, including acids, alkalis, and seawater. This makes them ideal for applications in aggressive environments where other materials might succumb to corrosion.
Table Of Content
High Temperature Performance: Inconel 625 maintains its strength and integrity at elevated temperatures, making it suitable for high-temperature applications. This is particularly advantageous in industries like aerospace and gas turbine engineering, where components are subjected to extreme heat.
Strength and Durability: Inconel 625 fasteners are known for their high tensile strength and toughness. This makes them capable of withstanding heavy loads and mechanical stresses, ensuring the structural integrity of the assemblies in which they are used.
Applications: Inconel 625 fasteners find applications in a variety of critical settings. In aerospace, they are used in the construction of aircraft engines and components. In the oil and gas industry, these fasteners are employed in downhole and surface wellhead equipment. The chemical processing industry benefits from Inconel 625's resistance to corrosive chemicals.
| Specification | ASTM B446 / ASME SB446 |
| Standard | DIN, ASTM, BS and all International Standards |
| Length | 3 mm to 200 mm |
| Size | M3 – M56 | 3/6″ to 2″ | Custom Sizes |
| Screw Types | Inconel 625 Threaded Screw, Hex Head Screw, Socket Head Screw, Socket Set Screw, Blind Rivet, Concrete Screw, Shoulder Screw, Anchor Screw, Panel Screw, Machine Screw etc. |
| Bolts Types | Inconel 625 Hex Head Bolts, Hex Bolts, Square Bolts, Eye Bolts, T Bolts, U Bolts, Lag Bolts, Counter sunk Bolts etc. |
| Washer Types | Inconel 625 Lock Washer, Machine Washers, Star Washers, Sealing Washer, Split Washer etc. |
| Studs Types | Inconel 625 Double Ended Studs, Threaded Rod, Tie Bars, Tie Rods etc. |
| Nut Types | Inconel 625 Coupling Nut, Hex Head Nut, Wing Nut, Square Nut, Panel Nut, T Nut, Acorn Nuts, Dome Nut, Eye Nut, Lock Nut etc. |
| Inconel Alloy 625 Fasteners Price List | Price Per Pcs. |
| Alloy 625 Socket Head Cap Screw | USD $3.25 |
| Inconel Alloy 625 Screws | USD $3.45 |
| Alloy UNS N06625 Nuts | USD $1.65 |
| Inconel Alloy 625 Hex Bolts | USD $6.35 |
| Alloy | Common Name | Related Specification | |||
| British | European | ASTM | UNS | ||
| Alloy 625 | Inconel 625 ® | BS 3076 NA 21 | 2.4856 | B446 | N06625 |
| Element | Nickel (Ni) | Silicon (Si) | Carbon (C) | Sulphur (S) | Copper (Cu) | Iron (Fe) | Manganese (Mn) |
|---|---|---|---|---|---|---|---|
| Content (%) | 58.0 min | 0.50 max | 0.10 max | 0.015 max | - | 5.0 max | 0.50 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.4 g/cm3 | 1350 °C (2460 °F) | Psi - 1,35,000 , MPa -930 | Psi - 75,000 , MPa - 517 | 42.5 % |
| Bolts Size | A (max) | B | C (min) | D | E | F (Thread Length) | ||
| max | min | 6" and shorter | Over 6" | |||||
| 1/4" | 0.260 | 3/8 | 0.498 | 11/64 | 0.03 | 0.01 | 0.750 | 1.000 |
| 5/16" | 0.324 | 1/2 | 0.665 | 13/64 | 0.03 | 0.01 | 0.875 | 1.125 |
| 3/8" | 0.388 | 9/16 | 0.747 | 1/4 | 0.03 | 0.01 | 1.000 | 1.250 |
| 7/16" | 0.452 | 5/8 | 0.828 | 19/64 | 0.03 | 0.01 | 1.125 | 1.375 |
| 1/2" | 0.515 | 3/4 | 0.995 | 21/64 | 0.03 | 0.01 | 1.250 | 1.500 |
| 5/8" | 0.642 | 15/16 | 1.244 | 27/64 | 0.06 | 0.02 | 1.500 | 1.750 |
| 3/4" | 0.768 | 1-1/8 | 1.494 | 1/2 | 0.06 | 0.02 | 1.750 | 2.000 |
| 7/8" | 0.895 | 1-5/16 | 1.742 | 19/32 | 0.06 | 0.02 | 2.000 | 2.250 |
| 1" | 1.022 | 1-1/2 | 1.991 | 21/32 | 0.09 | 0.03 | 2.250 | 2.500 |
| 1-1/8" | 1.149 | 1-11/16 | 2.239 | 3/4 | 0.09 | 0.03 | 2.500 | 2.750 |
| 1-1/4" | 1.277 | 1-7/8 | 2.489 | 27/32 | 0.09 | 0.03 | 2.750 | 3.000 |
| 1-3/8" | 1.404 | 2-1/16 | 2.738 | 29/32 | 0.09 | 0.03 | 3.000 | 3.250 |
| 1-1/2" | 1.531 | 2-1/4 | 2.986 | 1 | 0.09 | 0.03 | 3.250 | 3.500 |
