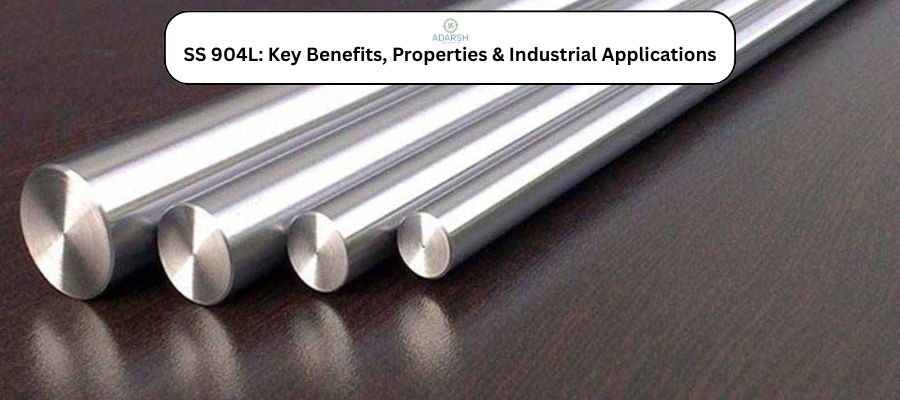

Stainless Steel 904L Round Bars are a super austenitic grade built for environments that destroy standard stainless steel grades quickly. High nickel, chromium, molybdenum, and copper content give the alloy a corrosion resistance profile that covers chlorides, sulfuric acid, phosphoric acid, and mixed aggressive media simultaneously. That combination is why SS 904L Round Bars are the specified choice across chemical processing, marine, pharmaceutical, oil and gas, and heat exchanger applications where other grades fall short. We supply certified 904L round bars to industries requiring documented performance in demanding corrosive environments.
What Are Stainless Steel 904L Round Bars?
SS 904L is a low-carbon super austenitic stainless steel bar produced under ASTM B649, ASTM A276, and UNS N08904. The low carbon content prevents sensitisation in the heat-affected zone during welding, making it a genuinely weldable option for fabricated components without the post-weld heat treatment that higher-carbon grades require. It resists chloride-induced pitting and crevice corrosion far more effectively than standard 316L, and it handles sulfuric acid environments where 316L is simply unsuitable.
Types Of Stainless Steel 904L Bars include round, hex, flat, and custom profiles in bright, polished, black, peeled, and ground surface finishes. Available diameter range runs from 3 mm through to 500 mm, with lengths standard and cut-to-size depending on project requirements.
Chemical Composition and Mechanical Properties of SS 904L Round Bars
The tables below cover the full chemical composition and mechanical property requirements for SS 904L round bars. The high nickel content provides the base corrosion resistance; molybdenum handles pitting and crevice attack in chloride environments; copper additions specifically target sulfuric acid resistance; and the low carbon maximum prevents weld sensitization.
| Element | Composition (%) |
| Nickel (Ni) | 24.0 – 26.0 |
| Chromium (Cr) | 19.0 – 23.0 |
| Molybdenum (Mo) | 4.0 – 5.0 |
| Copper (Cu) | 1.0 – 2.0 |
| Carbon (C) | 0.02 Max |
| Manganese (Mn) | 2.0 Max |
| Silicon (Si) | 1.0 Max |
| Phosphorus (P) | 0.045 Max |
| Sulfur (S) | 0.035 Max |
| Iron (Fe) | Balance |
Mechanically, 904L delivers solid tensile and yield strength with high elongation. That elongation value confirms the ductility that makes it suitable for fabrication and components subject to thermal cycling. Toughness, stress corrosion cracking resistance, and long-term durability in acidic environments are the properties that consistently justify the specification.
| Property | Value |
| Tensile Strength | 490 MPa Min |
| Yield Strength (0.2%) | 220 MPa Min |
| Elongation | 35% Min |
| Hardness (Brinell) | 180 HB Max |
Key Features and Benefits of Stainless Steel 904L Round Bars
These high-alloy steel components incorporate the structural strength with excellent chemical and physical stability. Those are the major performance advantages:
Superior Corrosion Resistance
These specialized bars resist pitting, crevice corrosion, and stress corrosion cracking in aggressive chloride and acid environments where standard grades fail.
High Strength
The solid mechanical properties easily support demanding load-bearing and pressure-containing industrial applications without needing to oversize the metal section.
Oxidation Resistance
The high chromium content within the alloy provides reliable oxidation resistance when operating at elevated process service temperatures.
Long Service Life
An incredibly low structural corrosion rate ensures significantly longer intervals between component replacements, drastically reducing total operational lifecycle costs.
Low Maintenance
No protective coating is required in most environments because the self-protective passive layer independently maintains the original surface condition.
Manufacturing Process of SS 904L Round Bars
The heat chemistry is verified to meet UNS N08904 composition requirements before choosing the raw material. The billet is worked to the bar size in a number of passes at high temperature. Smaller bars are cold-drawn to tighter proportions and with a greater surface polish. The carbide precipitation introduced by cold working can be dissolved by a solution-annealing heat treatment, restoring corrosion resistance and ductility. Surface finishing comprises bright, polished, ground or peeling finishes depending upon use. Prior to shipping, quality inspection analyzes the dimensions, surface condition and material certification.
Applications of SS 904L Round Bars
These high-performance alloy bars excel in demanding industries where extreme corrosion and localized pitting are constant operational challenges. Here is how they are typically applied:
Chemical Processing Plants
These bars are machined into reactor shafts, agitator components, valve stems, and pump parts to withstand continuous acid and chloride service.
Marine Equipment
Engineered for deep-sea and coastal environments, these components provide reliable strength for critical fasteners, propeller shafts, and structural marine parts.
Heat Exchangers
They are the structural foundation for the thermal systems, anchored by tube sheet bolting and support parts exposed to corrosive fluids.
Pharmaceutical Industry
These components are widely specified for specialized medical manufacturing equipment that requires ultra-clean surfaces and resistance to harsh sterilizing chemicals.
Oil and Gas
These durable rods deliver long-term structural integrity for demanding downhole and surface components operating in sour gas and chloride-bearing environments.
Pulp and Paper Industry
This material safely handles bleaching plant components, offering superior resistance when constantly exposed to aggressive chlorine compounds and acidic media.
Pollution Control Equipment
Designed to be in the compliance with all the strict environmental utility demands, these bars support scrubber internals and structural components inside corrosive fume extraction systems.
Available Sizes, Standards, and Specifications
The specification table below covers the full range of sizes, standards, surface finishes, and forms available from Adarsh Stainless Pvt Ltd.
| Parameter | Details |
| Standards | ASTM B649 / ASTM A276 / UNS N08904 |
| Diameter Range | 3 mm to 500 mm |
| Length | 1000 mm to 6000 mm / Custom |
| Surface Finish | Bright, Polished, Black, Peeled, Ground |
| Form | Round Bar, Hex Bar, Flat Bar |
| Heat Treatment | Annealed / Solution Annealed |
How to Choose the Right SS 904L Round Bars Supplier
The certifications prove that the bar offered adheres to the chemical and mechanical criteria of ASTM B649 or A276. Test requirements should comprise PMI verification, tensile testing and hardness confirmation per heat. Material traceability from heat number through to MTC for critical applications is non-negotiable. Project delays are avoided by ensuring inventory availability in required diameter and length. Export capabilities & custom size support. International & non-standard project requirements. Selecting an experienced SS 904L Round Bars Supplier guarantees constant quality, quick delivery, and adherence to global standards.
Maintenance and Storage Tips
With proper care and storage, the surface polish of stainless steel bars will be maintained. Store on wooden or rubber-padded racks, away from moisture. Use nylon slings in handling to avoid surface damage or carbon contamination. Finally, check and clean the bars before to installation and apply protective covering during shipment.
Conclusion
904L stainless steel round bars deliver where standard grades fall short: chloride environments, acid service, and applications where stress corrosion cracking is a documented failure mode. The combination of high nickel, molybdenum, and copper content covers the full range of aggressive corrosive conditions that industrial plants actually encounter. Contact us at Adarsh Stainless Pvt Ltd for certified SS 904L Round Bars in custom diameters and lengths, backed by full material documentation.
